FLEXTECH · 10.1″ & 15.6″ TOUCH PANELS

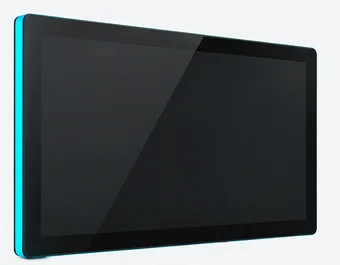

Booking Panel

The right information. Right outside the room.

Give people a clear view of room availability and the day’s schedule. Choose a compact 10.1-inch panel or a larger 15.6-inch display, supplied as a Smart Space appliance. Managed by FlexIoT and integrated with FlexTech for content.

Enquire about this appliance View specifications

1 / 7Room-booking interface illustration. Content and branding are configured for your site.

Two screen sizesPower over EthernetTouch display

DESIGNED FOR EVERYDAY USE

Designed for your space. Built around your brand.

Clear room information at the door

Show room availability and schedules where people arrive, with touch interaction and status lighting for your configured booking experience.

Camera-free by design

No built-in camera: a considered choice for meeting rooms, reception areas and tenant entrances.

Your brand takes centre stage

No manufacturer branding on the front keeps attention on your content and identity.

More screen, less frame

A slim bezel provides a generous viewing area in a clean, compact design.

Looks right in either orientation

Symmetrical bezels across both sizes create a balanced appearance in portrait or landscape. Content layouts and mounting are confirmed for your chosen orientation.

A cleaner installation

Power over Ethernet carries power and network connectivity through one cable, reducing visible cabling at the display.

Two sizes for different spaces

Choose 10.1-inch or 15.6-inch to suit the location, viewing distance and interface.

Touch-enabled interaction

Support configured booking and visitor workflows as well as displaying information, using the panel’s touch interface.

Managed as an appliance

FlexIoT device management and FlexTech content integration bring the hardware and software together as a configured solution with ongoing management.

Made forMeeting-room bookingsRoom availabilityDaily schedules

CHOOSE YOUR SIZE

One experience. Two formats.

Choose the display size that suits your installation.

Booking Panel model comparison
Specification	10.1″ panel	15.6″ panel
Screen	10.1-inch IPS LCD	15.6-inch LCD touch display
Viewing area (W × H)	216.55 × 135.36 mm	Approx. 345.4 × 194.3 mm (estimated)
Resolution	1280 × 800	Available on request
Touch	10-point capacitive	Touch display

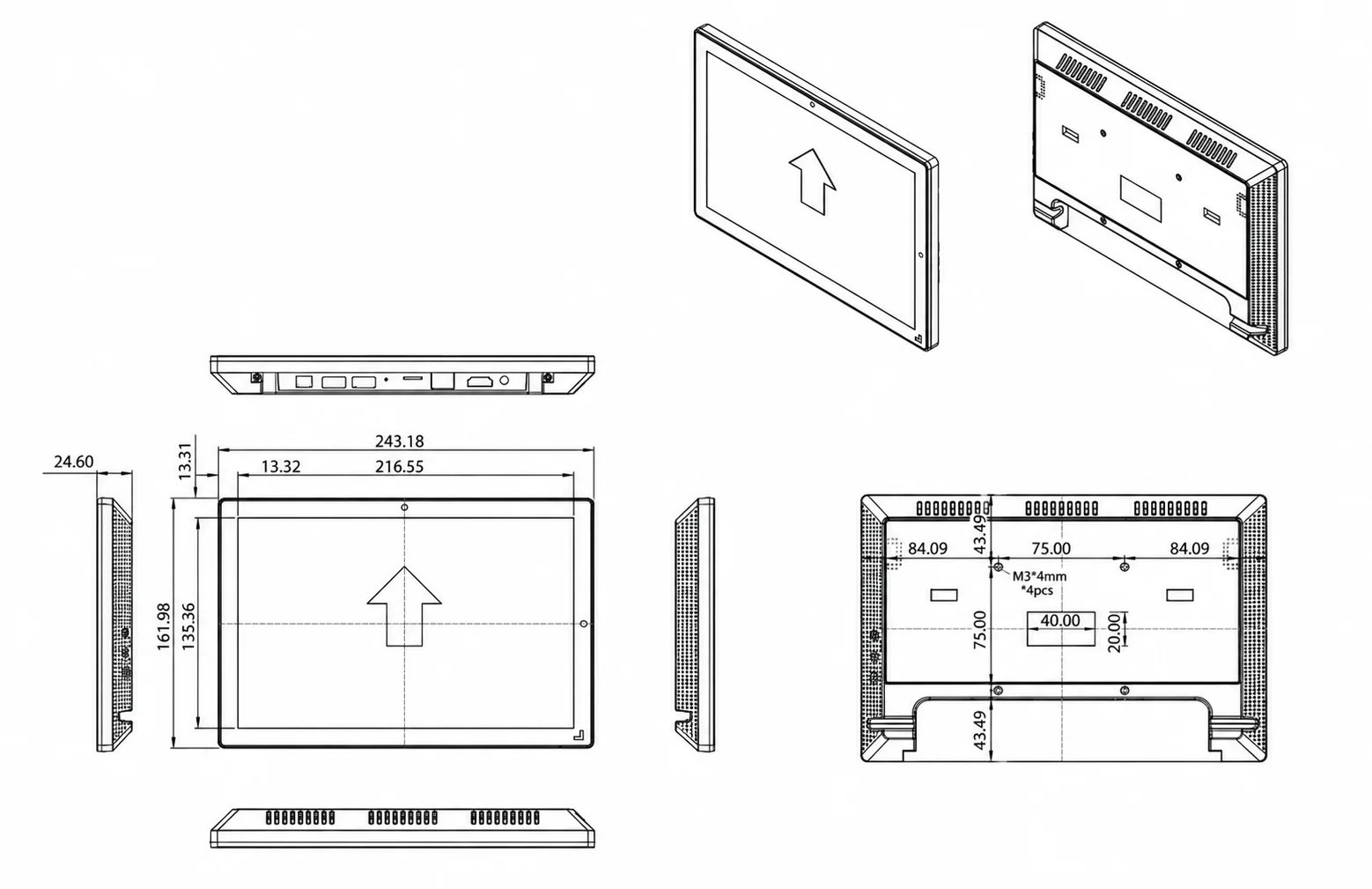

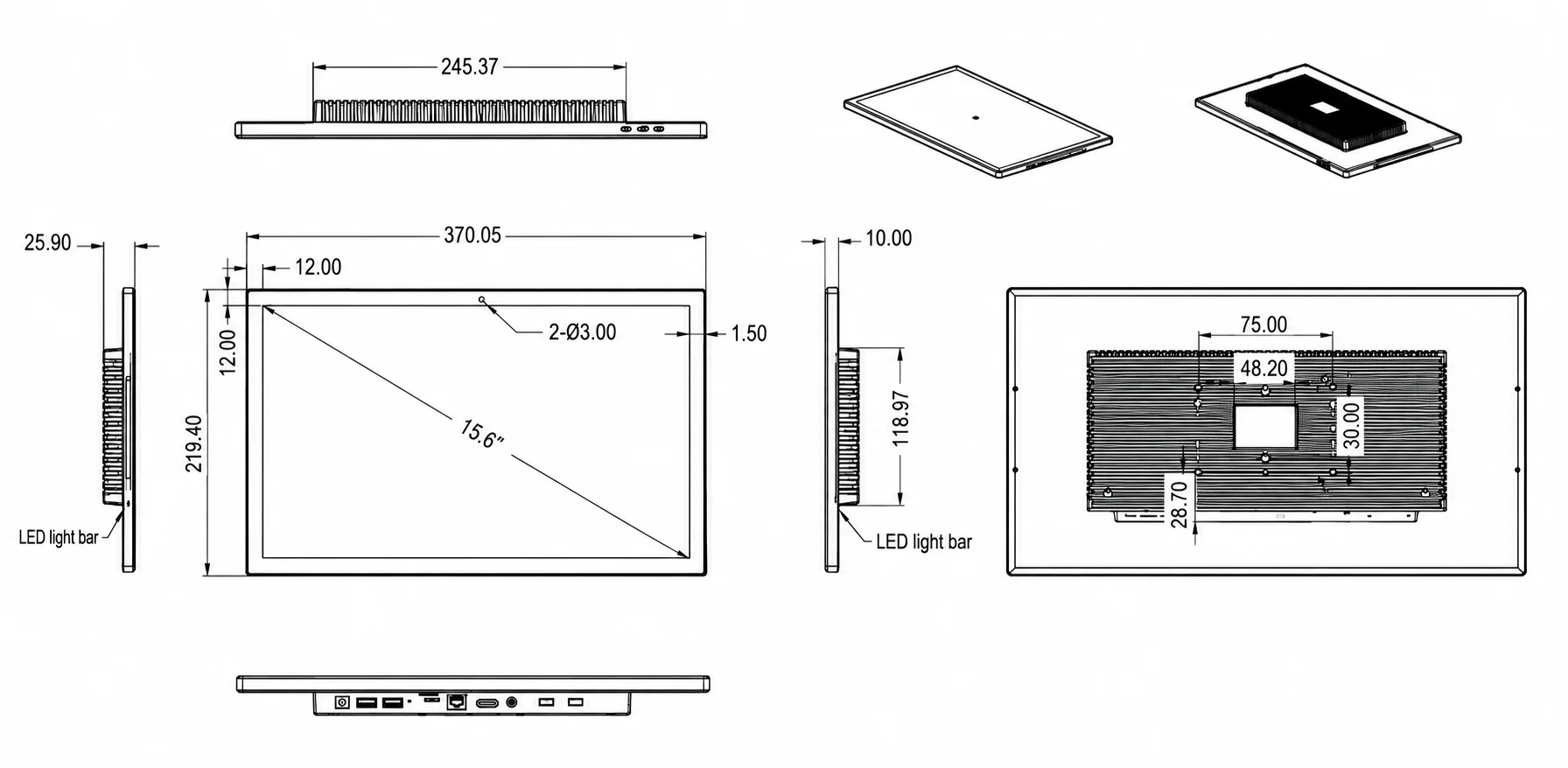

Overall size (W × H × D)	243.18 × 161.98 × 24.60 mm	370.05 × 219.40 × 25.90 mm
Mounting pattern	75 × 75 mm VESA	75 × 75 mm
Mounting threads	4 × M3	4 × M4
Status lighting	Illuminated edge	Integrated LED light bar
Device management	FlexIoT	FlexIoT
Content integration	FlexTech	FlexTech
Memory / storage	4 GB RAM / 32 GB storage	4 GB RAM / 32 GB storage
Operating system	Android 14	Android 14

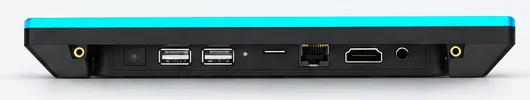

Wired network	Gigabit Ethernet (RJ45)	Gigabit Ethernet (RJ45)
Power	Power over Ethernet supported	Power over Ethernet supported
Wi-Fi	802.11 b/g/n/ac/ax	802.11 b/g/n/ac/ax
Bluetooth	5.4	5.4
Audio	Integrated speakers and microphone	Integrated speakers and microphone
Video output	HDMI	HDMI
USB	USB connectivity; ports vary by model	USB connectivity; ports vary by model

PLAN YOUR DEPLOYMENT

Configured for your environment.

We’ll help match the screen size, mounting and PoE supply to your location. Software features depend on the FlexTech configuration and enabled modules. Confirm the required experience and installation details when requesting a quote.

Talk to Smart Space
