Room Occupancy Sensor

Understand when a room is in use.

Bring room occupancy into your connected workplace with a discreet 24 GHz mmWave radar ceiling sensor. Add context to meeting rooms and shared spaces, with the installation and software configuration matched to your FlexIoT deployment.

Enquire about this appliance View specifications

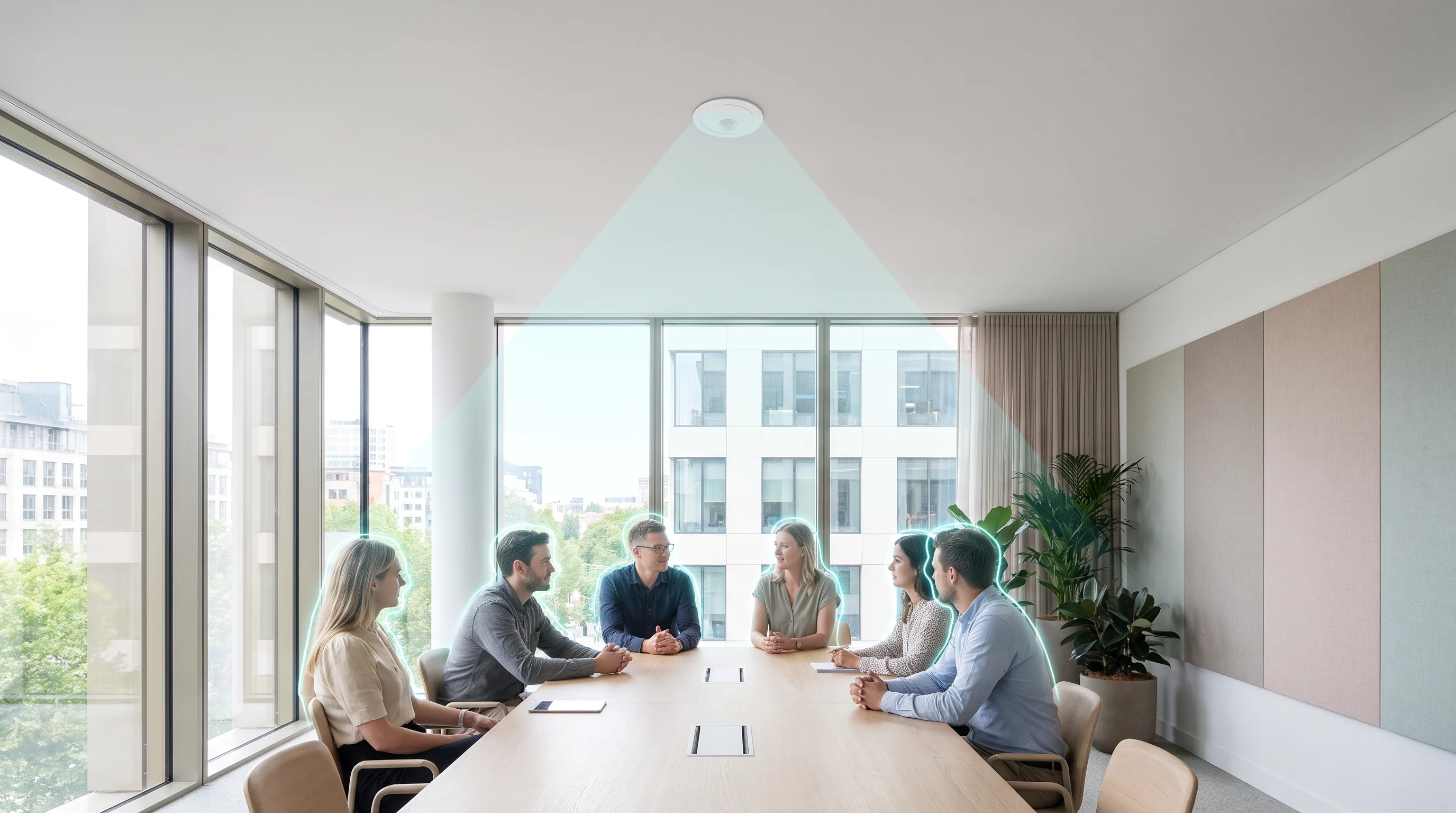

1 / 4Room-occupancy concept illustration. The highlighted area is illustrative, not a specified detection range.

24 GHz mmWaveDiscreet ceiling formatFlexIoT

DESIGNED FOR EVERYDAY USE

Useful technology. A considered fit.

24 GHz mmWave sensing

Use mmWave radar sensing to bring room occupancy information into your connected workplace and help understand when spaces are in use.

Keep the installation discreet

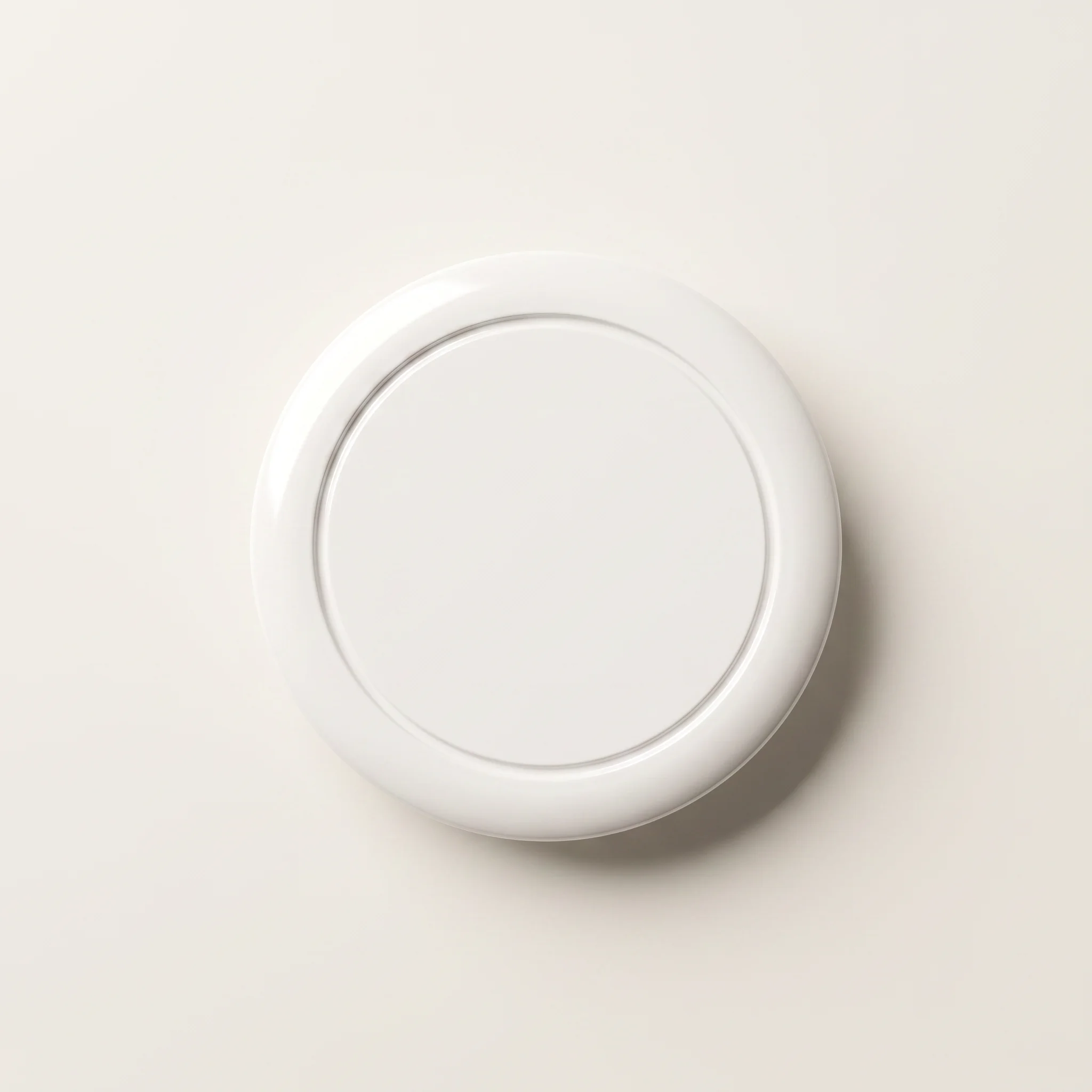

A compact round enclosure sits neatly in the ceiling. The documented housing has a 50 mm outer diameter and a recessed mounting design.

Configure for your space

Configure detection sensitivity and presence delays to suit the room and your occupancy workflows. Placement and commissioning account for partitions, airflow and other moving objects.

Made forMeeting roomsShared spacesWorkplace occupancy

THE DETAILS

Technical specifications.

Planning an installation? Talk to us about the configuration and accessories for your project.

Request a quote

Product type: Room occupancy sensor
Platform: FlexIoT
Form factor: Round white enclosure

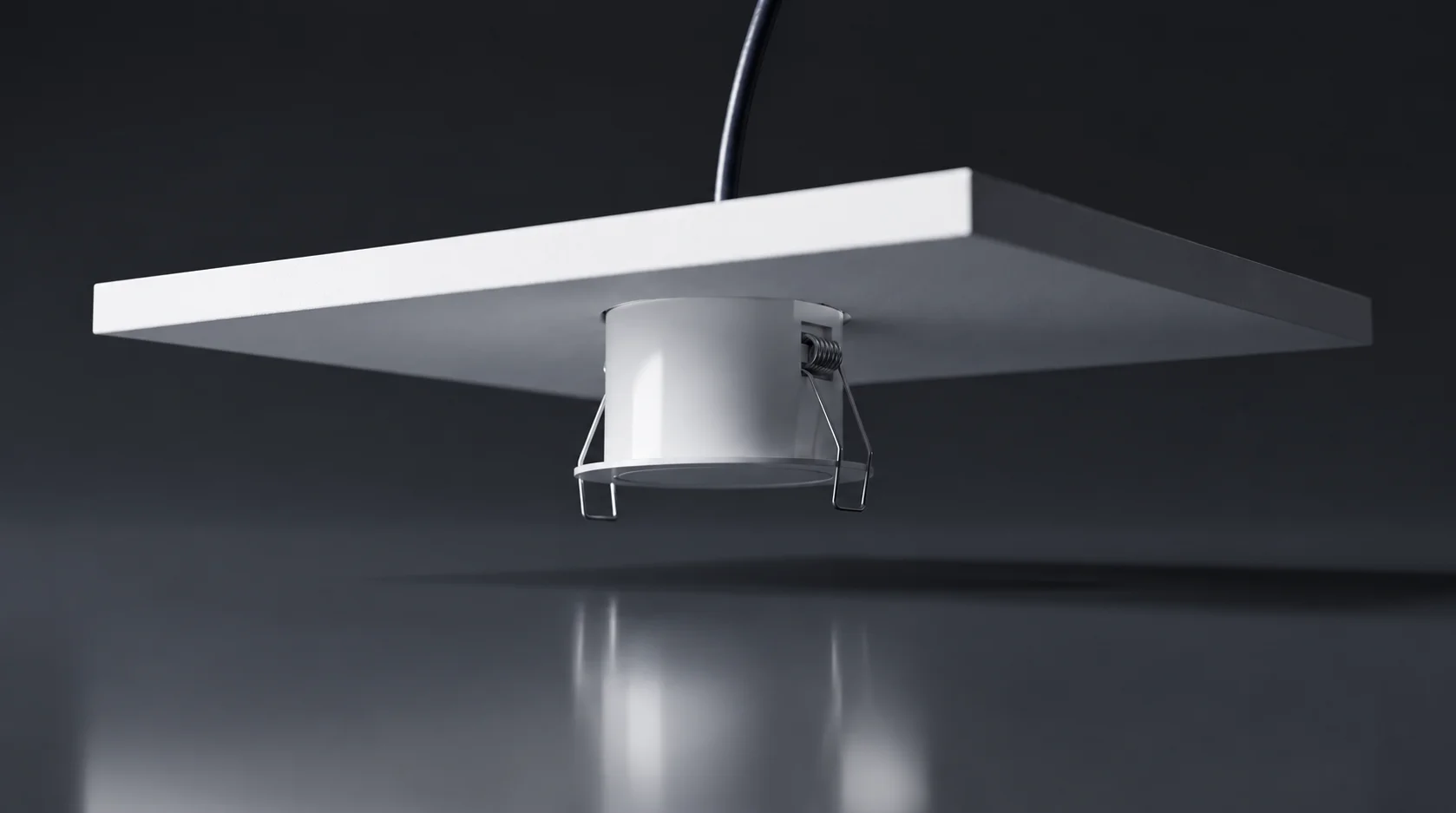

Mounting: Recessed ceiling installation illustrated, with spring clips
Detection technology: 24 GHz mmWave radar
Detection range: Confirmed with the selected model
Typical mounting height: 2.7–3.5 m; coverage assessed for your room layout
Operating temperature: −5 to +50 °C
Operating humidity: 5–90% RH, non-condensing
Ingress protection: IP20 — indoor dry locations
Power / connectivity: Confirmed with the selected model
Overall dimensions: 50 mm outer diameter × 37 mm height (family manual)
Recessed body: 40 mm diameter × 35 mm height
Ceiling cut-out: 40–42 mm; confirm against supplied unit before cutting
Weight: Up to 40 g

PLAN YOUR DEPLOYMENT

Configured for your environment.

We’ll help plan sensor placement around your room layout and intended occupancy workflows. Physical and operating specifications shown are based on the product-family manual and are confirmed against the supplied variant. Detection coverage, power, connectivity and available integrations are confirmed for your project.
