FLEXIOT · INDOOR ENVIRONMENT & OCCUPANCY

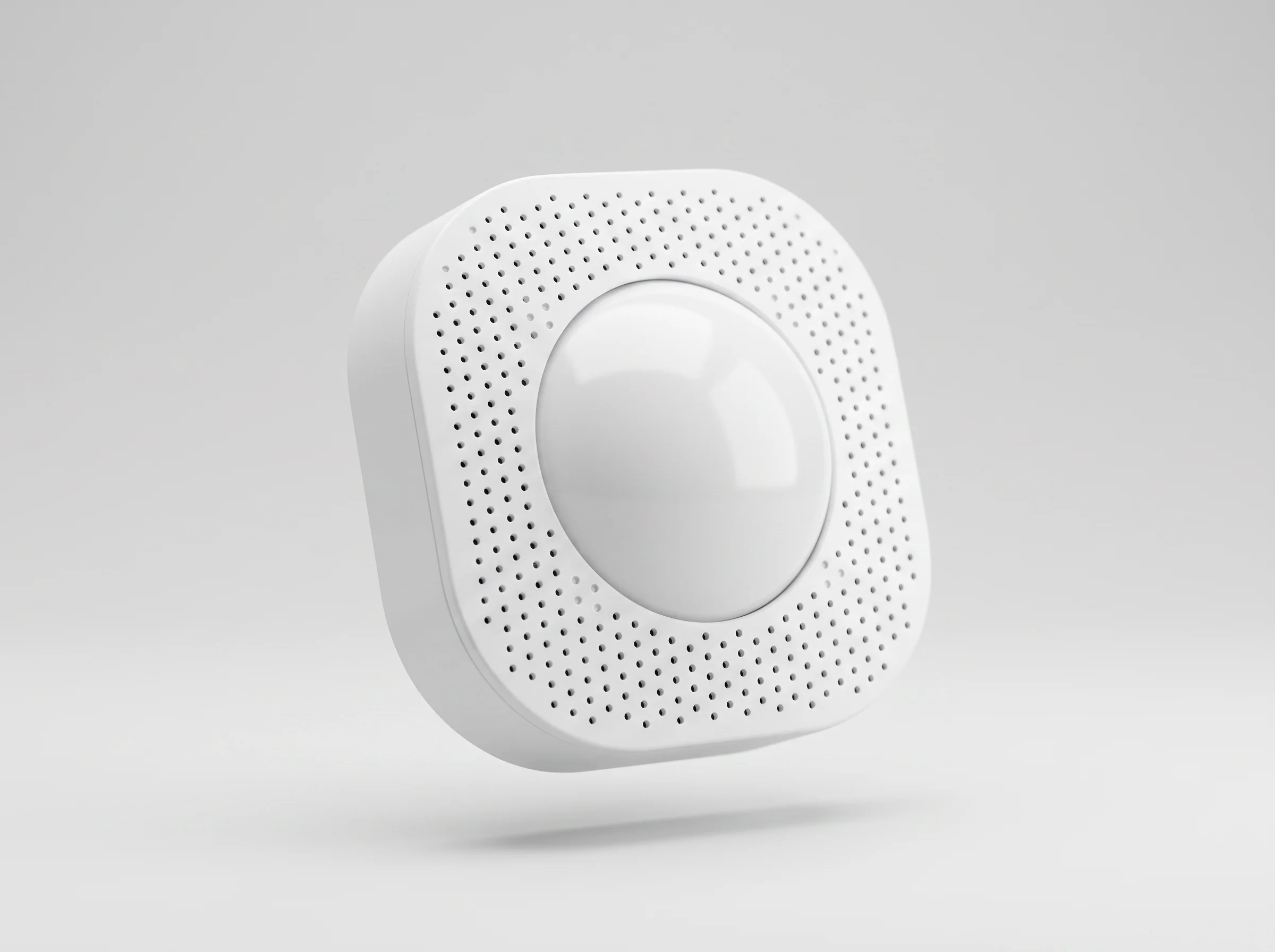

Environment Sensor

Understand the room around you.

Monitor indoor conditions and room activity with one connected sensor. Managed by FlexIoT, the Environment Sensor brings together CO₂, total volatile organic compounds (TVOC), temperature, humidity, air pressure, ambient light and radar motion detection.

Enquire about this appliance View specifications

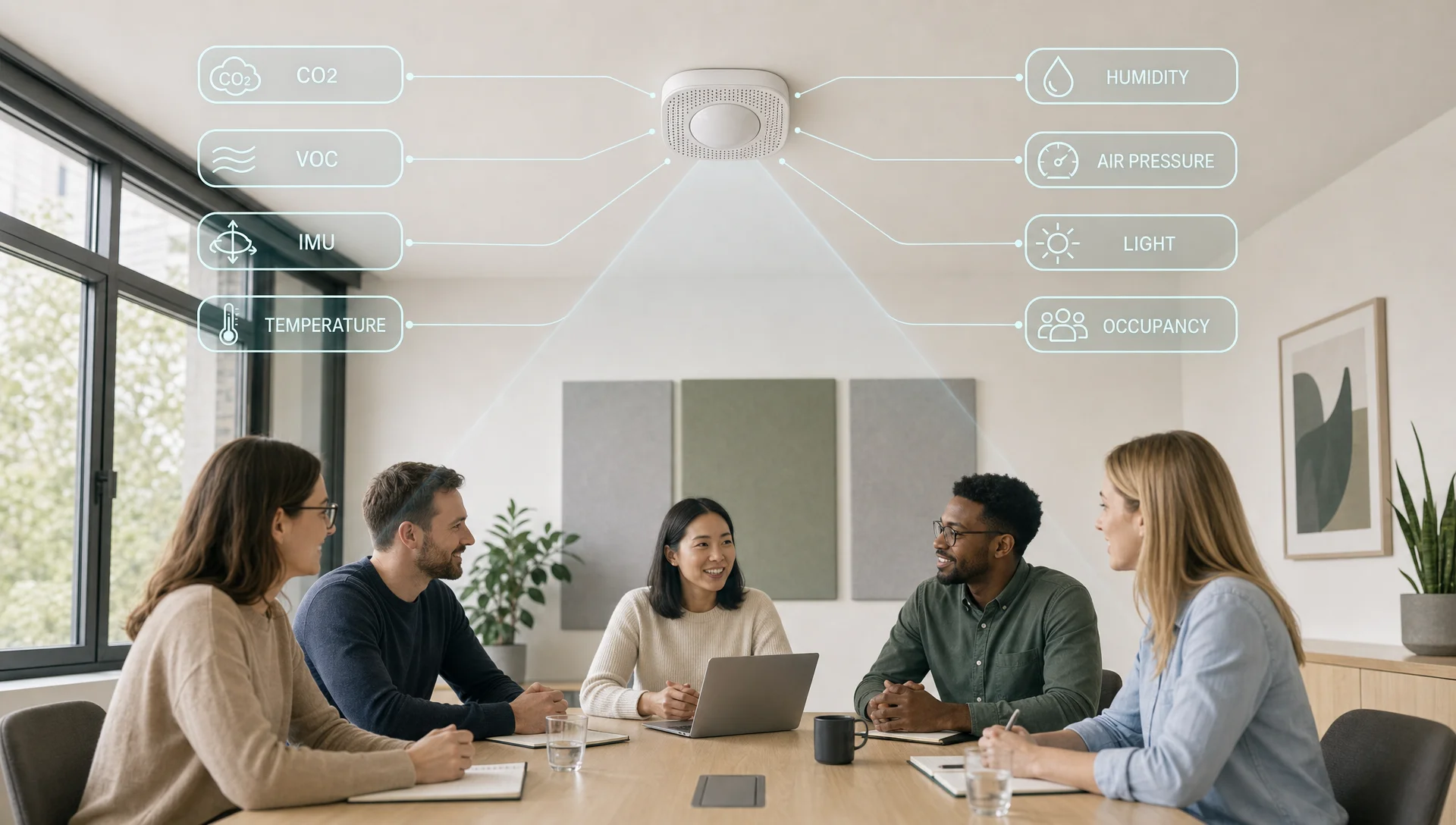

1 / 4Illustrative sensing overview. Measurement ranges, accuracy and enabled capabilities are confirmed for your deployment.

Indoor conditionsOccupancyFlexIoT

ROOM INSIGHTS

See the story of your space.

Illustrative data · Sample day

Explore the kinds of trends sensor readings can reveal. These example charts use fictional data to illustrate possible reporting, rather than a live dashboard. Available views depend on your deployment.

CO₂

ppm

See how carbon dioxide readings change through the day.

Temperature

°C

Follow temperature changes during occupied hours.

Relative humidity

Compare humidity patterns with other room conditions.

TVOC

ppb

Explore trends in total volatile organic compound readings.

Ambient light

lux

Understand how light levels vary across the working day.

Room activity

Motion

Example radar detection states—not a people count or proof that a room is empty.

View sample readings

Fictional readings for illustration only. Radar values show the state at each sample time.
Time	CO₂ (ppm)	Temperature (°C)	Relative humidity (%)	TVOC (ppb)	Ambient light (lux)	Room activity (Motion)
08:00	460	20.5	44	65	120	No signal
09:00	520	21	45	80	360	Detected
10:00	740	21.8	48	140	510	Detected
11:00	980	22.6	52	210	640	Detected
12:00	860	22.9	50	170	710	No signal
13:00	580	22.3	46	95	680	No signal
14:00	760	22.5	48	130	590	Detected
15:00	1020	23.1	53	230	460	Detected
16:00	890	23.3	51	190	330	Detected
17:00	630	22.4	47	110	180	No signal
18:00	490	21.7	45	75	60	No signal

DESIGNED FOR EVERYDAY USE

Useful technology. A considered fit.

See indoor conditions together

Track CO₂ in parts per million, TVOC in parts per billion, temperature and relative humidity to better understand indoor conditions.

Add context to the space

Combine radar motion detection with ambient light and air-pressure readings for more context about room activity and conditions. Motion detection indicates activity rather than counting people.

Plan a connected deployment

Connect over Wi-Fi and manage the sensor through FlexIoT. A configurable reporting interval lets you match data collection to your deployment.

Made forMeeting roomsWorkplace environmentsShared spaces

THE DETAILS

Technical specifications.

Planning an installation? Talk to us about the configuration and accessories for your project.

Request a quote

Product type: Indoor environment sensor
Platform: FlexIoT
Air quality: CO₂ (ppm) and TVOC (ppb)
Temperature / humidity: Temperature (°C) and relative humidity (%)
Ambient light: Illuminance (lux)
Air pressure: Atmospheric pressure (Pa / hPa)
Room activity: Radar motion detection; no people count
Motion sensor: Six-axis IMU: three-axis accelerometer and gyroscope
Processor: ESP32-C6
Connectivity: Wi-Fi
Reporting: Configurable interval; 60-second default in current firmware
Form factor: Compact white enclosure; ceiling installation illustrated
Measurement ranges / accuracy: Confirmed with the selected model
Occupancy coverage: Confirmed for the installation
Power supply: Confirmed with the supplied hardware
Dimensions: Available on request

PLAN YOUR DEPLOYMENT

Configured for your environment.

We’ll help you plan sensor placement, the readings you need and how they fit your connected-space workflows. Power, connectivity, coverage, measurement specifications and available integrations are confirmed for your project.
